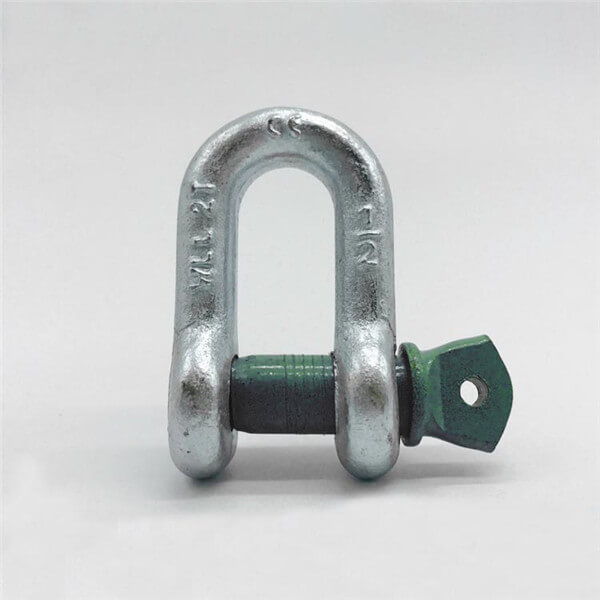

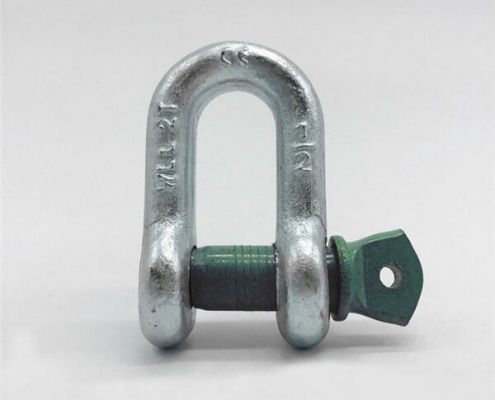

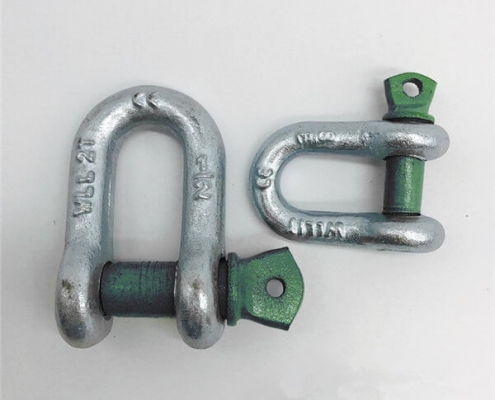

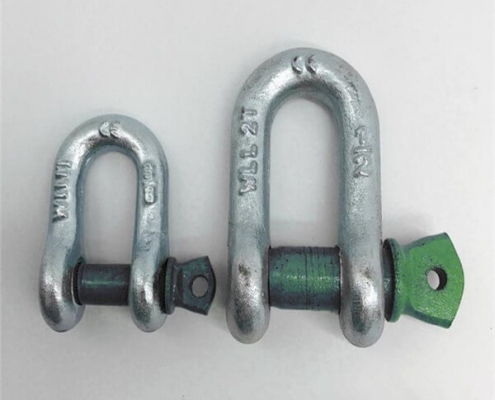

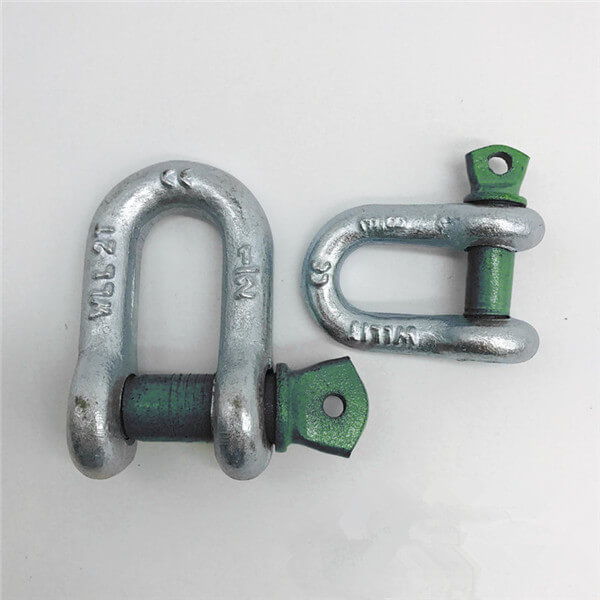

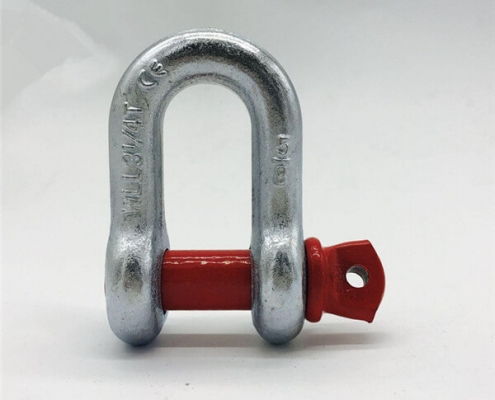

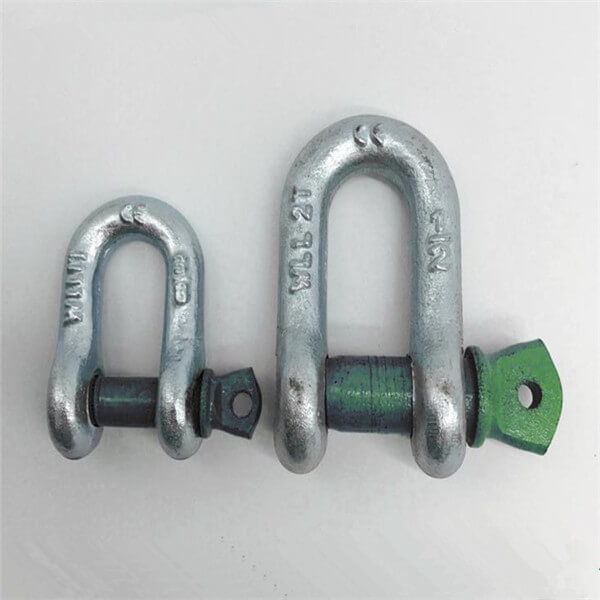

Item name: U.S. Type Screw Pin Chain Shackle G210

Material: Carbon Steel/Alloy Steel

Process: Drop Forged or Die Forging or Free Forging

Surface: Hot dip galvanized/Electric galvanized/Painted

Safety factor: 4:1 or 6:1

Certificates: ISO/CE

Size: All / Different Size Available

Sample: Free

Package: Carton/Gunny bag/Pallet / As customer’s requirements.

Description

• Standard Screw Pin.
• Forged – Quenched and Tempered.
• Zinc Plated, Hot Dipped Galvanized and Powder Coating.
• Satisfies ASME B30.26 requirements.
• Safety Factor: 6:1 or 4:1
• WLL embossed on each shackle.

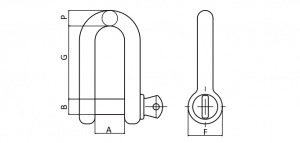

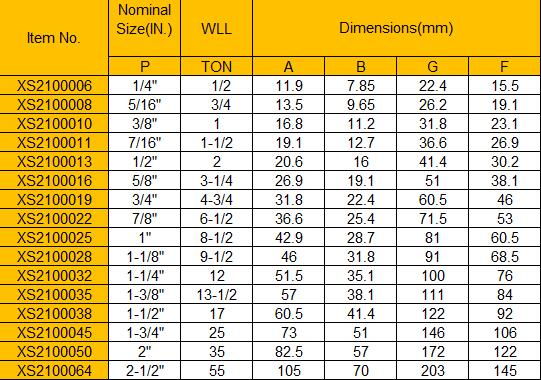

Specification
